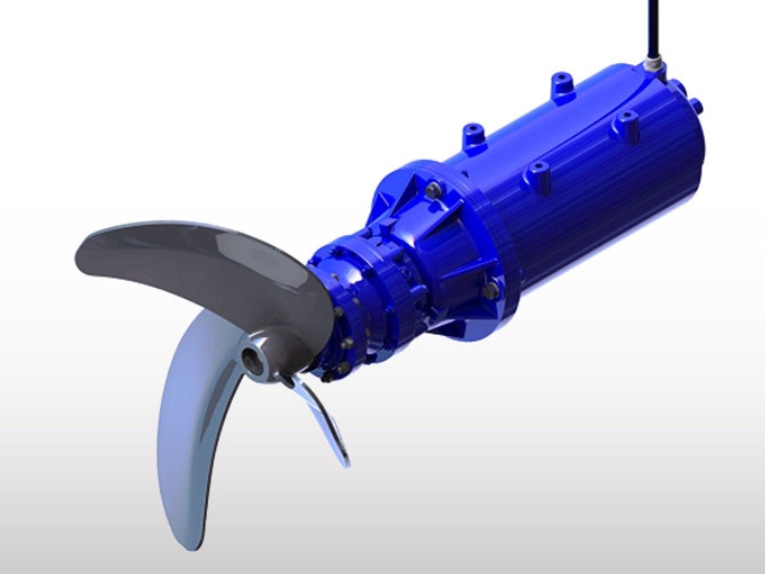

CHIOR SE Agitator: Outstanding Mixing Performance with Energy Savings

The submersible agitators CHIOR SE are designed to homogenise livestock slurry, biogas digestate and effluents in open tanks or anaerobic digesters.

The submersible agitators CHIOR SE are designed to homogenise livestock slurry, biogas digestate and effluents in open tanks or anaerobic digesters. The three-blade stainless steel propeller, combined with a comprehensive range of diameters and propeller designs, ensures the best balance between performance and energy consumption, delivering uniform mixing even with high solid content.

Why CHIOR SE makes the difference
• High efficiency and low power consumption, thanks to the optimised propeller profile and IE3 submersible motors.
• Maximum reliability: IP68 protection, integrated thermal probe, mechanical seals in tungsten carbide, self-lubricating radial bearings and NBR O-rings.
• Quick and safe installation: adjustable stainless steel bracket for vertical pipe mounting, EM7 cable with stainless steel cable gland and anti-pull system.
• ATEX versions available for power ratings from 11 to 22 kW.

Range and performance
• Power range: 2.2 – 22 kW
• Available versions:
o LE – 140 rpm: for large volumes
o ST – 280 rpm: for universal applications
o VE – 355 rpm: for surface crust breaking

Fields of application
Livestock farms, biogas plants, digestate tanks and wastewater treatment plants:
CHIOR SE agitators keep substrates homogeneous, reduce sediment build-up, enhancing downstream process stability.

Main technical features
High-strength cast-iron body, planetary gearbox in oil bath, three-blade 304 SS propeller, stainless steel mounting bracket for various pipe sizes and stainless steel base support.

For technical data sheets, custom configurations, or to contact us, please visit www.saveco-water.it
