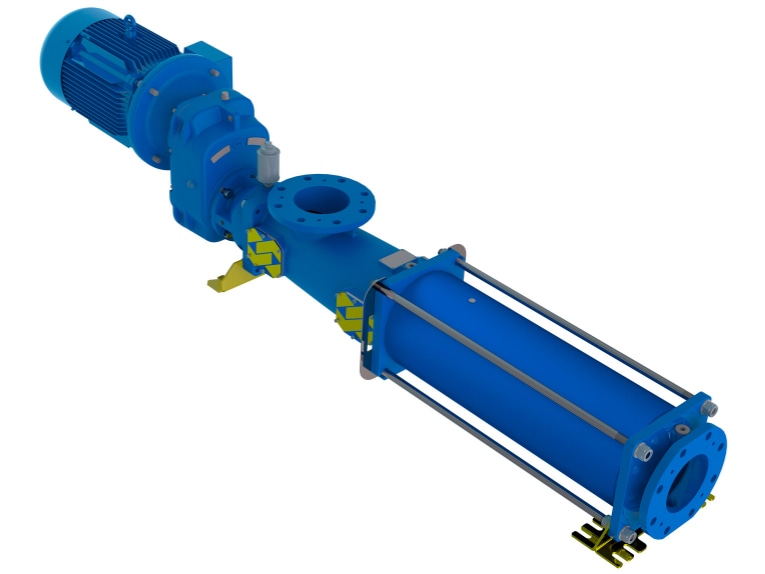

CHIOR PCP – Progressive Cavity Pump by SAVECO

The CHIOR PCP is a positive displacement pump designed to handle sludges and highly viscous liquids, with or without suspended solids.

The CHIOR PCP is a positive displacement pump designed to handle sludges and highly viscous liquids, with or without suspended solids.
The pump delivers a constant, almost pulsation-free flow, making it ideal for agricultural applications, particularly biogas plants requiring stable feed to solid–liquid separators, thermal treatment systems or downstream process lines.

How it works
A helicoid steel rotor rotates inside an NBR stator, forming a series of cavities containing the pumped fluid.
As the rotor turns, these cavities move progressively along the pump, creating a continuous and steady flow.
The CHIOR PCP is self-priming up to 9 metres (with clean water) and features dry-running protection, thanks to a drain hole integrated into the stator.

Why choose CHIOR PCP
• Energy efficiency: low-consumption IE3 motor combined with a parallel-shaft gear reducer with integrated support for both radial and axial loads.
• Long-term reliability: double mechanical cartridge seal (oil-lubricated) for extended durability; universal cardan joint with reinforced sleeve, easily replaceable through four maintenance openings.
• Solids handling: rotor with integrated cutting blades for pre-chopping and optimised flow; reduces turbulence and minimises clogging risks.
• Compact design and easy maintenance: space-saving body, multiple drain points and wash connections ensure quick and safe servicing.

Key data
• Standard operating pressure: 3 bar (at 204 rpm)
• Maximum slurry temperature: 55 °C | pH range: 6–9
• Maximum solid size: 12–24 mm
• Flow rates at 204 rpm (water at 20 °C): 9 / 20 / 30 / 40 / 55 / 80 m³/h
(models PCP 022 → 150)

Where CHIOR PCP performs best
Cattle sheds, biogas digesters, digestate tanks and wastewater treatment plants – wherever viscosity increases or fibres and solids are present.

The CHIOR PCP ensures steady flow and consistent pressure, improving the efficiency of downstream processes.
For technical data sheets, custom configurations or to contact us, visit www.saveco-water.it
